Bare Tube Coils

Bare Tube Coils

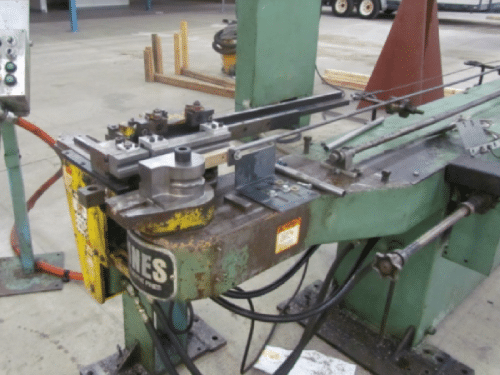

Bare tube coils are coils that have tubes only without fins. Fins provide most of the heat transfer area and are responsible for most of a coil’s capacity. However, the problem with fins is that they can get blocked with particulate in the air stream, which is problematic for coils that have a tight fin spacing, below 8 fins per inch. Restricting the airflow will lead to a reduction in the coil capacity and will affect the entire process, which is why it’s recommended to use bare tube coils. Bare tube coils are commonly used in high-temperature applications where the build-up of product in the coil bundle becomes a fire hazard. Advanced Coil’s bare coil tubes are manufactured using a specialized tube bender that allows for faster production. Also, our tube coils can be designed and built to meet ASME Boiler and Pressure Vessel Code, Section VIII, Division 1, U-stamp, and when requested our offerings can be National Board registered or CRN registered.

Bare Tube Coil Applications

Tubing Coil Materials & Sizes

Advanced Coil designs and manufactures bare tube coils using the following materials:

  • Stainless Steel
  • Carbon Steel
  • Exotic Materials

Tubing Coil Size & Wall Thickness

Tube SizeWall Thickness
5/8” OD Tubing0.049”, 0.083”, 0.109”
7/8” OD Tubing0.049”, 0.083”, 0.109”
½” PipeSch 10 up to Sch 160
¾” PipeSch 10 up to Sch 160

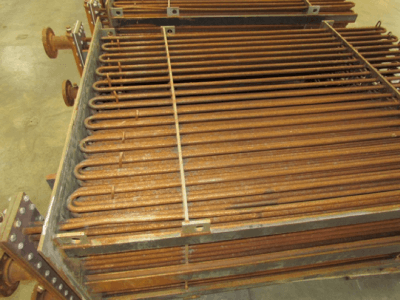

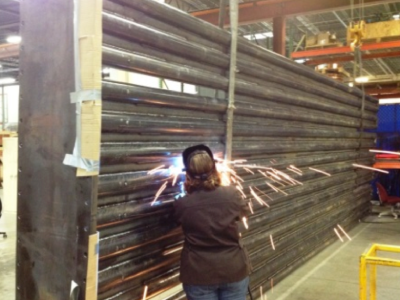

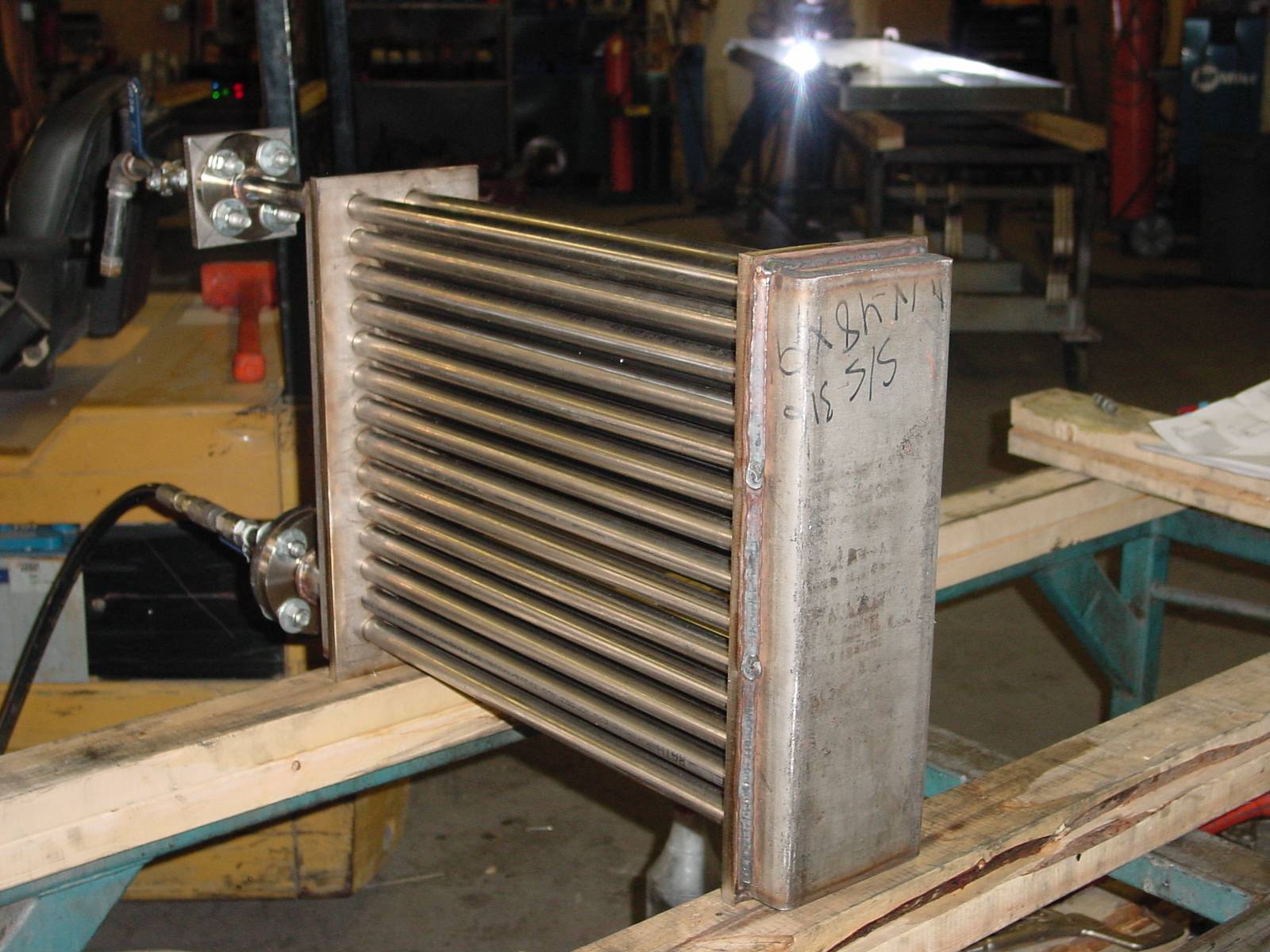

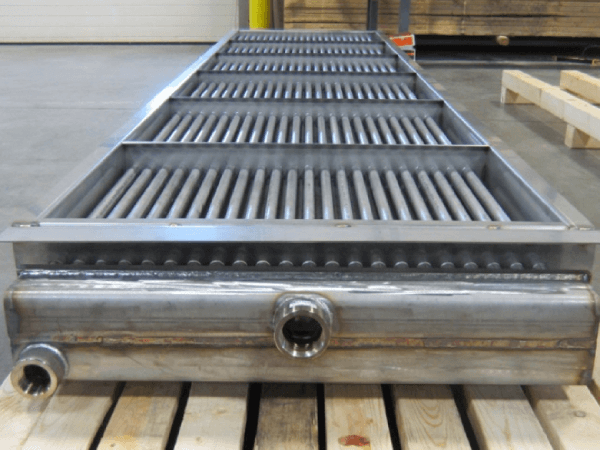

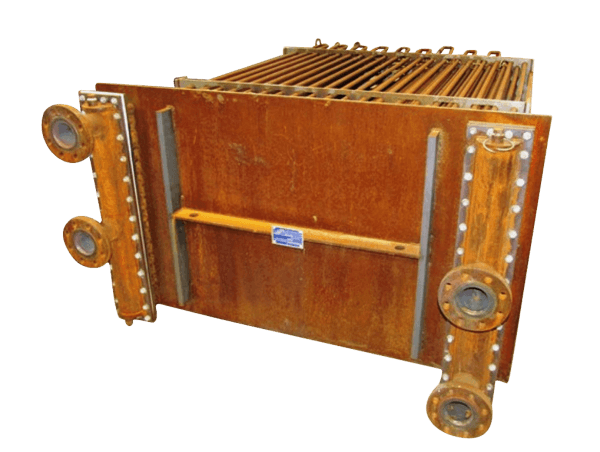

Product Gallery
