Heavy Duty Steam Coils
Discover the robust performance of Standard Steam Coils from Advanced Coil, engineered for industrial ventilation and process drying applications. Available in Model S and Model SU configurations, these coils provide versatile installation options and durable construction to perform reliably in demanding environments.
Whether you require opposite-end or same-end connections, our custom steam heating coils deliver efficient heat distribution and effective condensate management. Ideal for applications with incoming air temperatures above 40°F and stable steam pressure, each coil is built from high-quality materials such as stainless steel and aluminum to meet your exact specifications.
Trust Advanced Coil for reliable, high-performance steam coil solutions designed to keep your operation running efficiently.
Models Offered

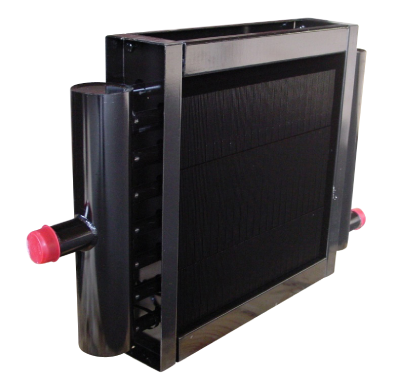

Model S

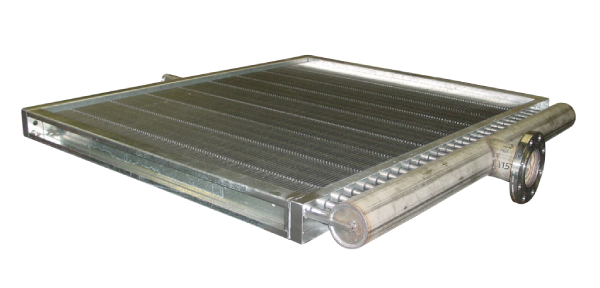

Standard Steam Coil with Opposite End ConnectionsStandard steam coils, such as the Model S, are designed with connections on opposite ends of the coil. In this configuration, steam enters the supply header, where it is evenly distributed across all tubes by an internal baffle plate. As the steam travels through the tubes, it condenses and releases heat, with the condensate draining through the return header for efficient operation.
These custom steam heating coils are commonly used in industrial ventilation and process drying applications across a wide range of industries. As a general guideline, coils in this series are ideal when incoming air temperatures exceed 40°F and the steam supply pressure remains stable.
Model SU

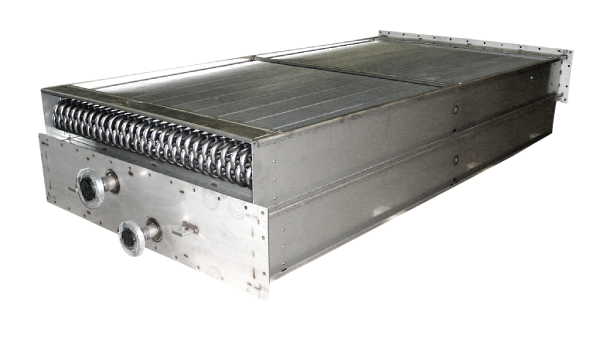

Standard Steam Coil with Same End ConnectionsThe Model SU coil features a two-row deep design with both the steam feed and condensate return connections located on the same end. Each circuit incorporates U-bend returns on the opposite end—hence the model’s name—providing efficient heat transfer and simplified installation in tight spaces
Standard steam heating coils are widely used in industrial ventilation and process drying applications across nearly every industry. As a general guideline, coils in this series are best suited for systems with incoming air temperatures above 40°F and a stable steam supply pressure.
Specifications

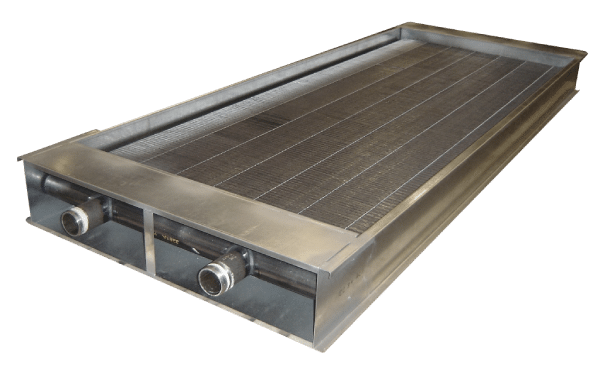

Standard Steam Coil Case Types & Materials
Advanced Coil Model S and SU Steam Coil case types include standard, baffled, air tight, slide-out, and pitched. We also work with the following materials:
| Fin Materials | Tube Materials | Case Materials |
| 0.016", 0.025", 0.032", or 0.040" thick half-hard temper aluminum | 7/8” x 0.049” wall 304L or 316L stainless steel | 16ga. to 1/4” 304L or 316L stainless steel |
| 0.025” or 0.016” thick half-hard temper copper | 7/8” x 0.083” wall 304L or 316L stainless steel | 16ga. to 7ga. galvanized steel |
| '0.015", or 0.020" thick 304 or 316 stainless steel | 7/8” x 0.109” wall steel | Other materials upon request |
| 0.012” thick carbon steel |
Typical Application Reference Chart
| Typical Application | Tube Material | Tube Designation | Header Material | Typical Design Pressure @ Temperature* |
| High pressure, non-corrosive steam | 0.109” wall (12 ga.) Steel | S09 Welded
309 Seamless | Sch 40 Carbon Steel | 250 PSIG @ 450°F |
| Corrosive steam or corrosive atmosphere | 0.049” wall (18 ga.) 304LSS | 449 Welded 549 Seamless | Sch 40 304LSS | 250 PSIG @ 450°F |
| Corrosive steam or corrosive atmosphere | 0.049” wall (18 ga.) 316LSS | 649 Welded 749 Seamless | Sch 40 316LSS | 250 PSIG @ 450°F |
| High-pressure, corrosive steam or corrosive atmosphere | 0.083” wall (14 ga.) 304LSS | 483 Welded 583 Seamless | Sch 40 304LSS | 250 PSIG @ 450°F |
| High-pressure, corrosive steam or corrosive atmosphere | 0.083” wall (14 ga.) 316LSS | 683 Welded 783 Seamless | Sch 40 316LSS | 250 PSIG @ 450°F |
*Higher pressures and/or temperatures are available to meet the specific project requirements
Steam Coil Applications
Advanced Coil manufactures custom steam heating coils for a variety of applications & Industries including:
Steam Coil Configurations
Model S

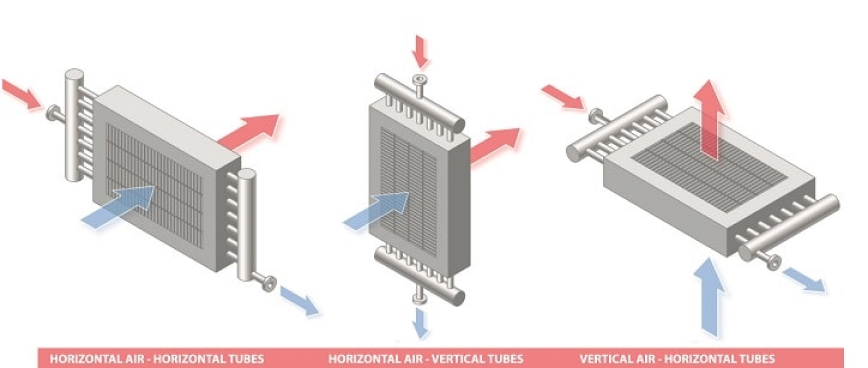

These standard steam coils can be installed in three possible configurations:
- Horizontal Air Flow with Horizontal Tubes
- Horizontal Air Flow with Vertical Tubes
- Vertical Air Flow with Horizontal Tubes
Model SU

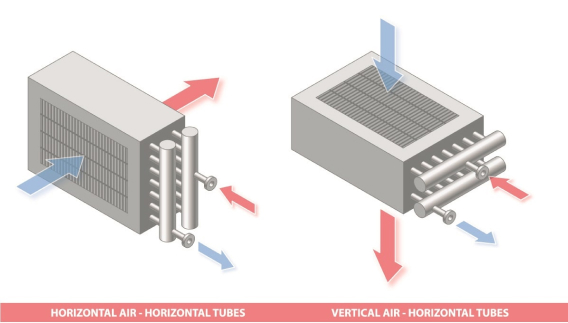

Because both connections are on the same end these coils can be installed in two possible configurations:
- Horizontal Air Flow with Horizontal Tubes
- Vertical Air Flow with Horizontal Tubes
