Industrial & Custom Steam Distributing Coils
Explore Industrial and Custom Steam Distributing Coils from Advanced Coil, engineered to prevent freezing and deliver reliable performance in extreme temperature environments. Our non-freeze steam distributing coils, including Models DS and DO, feature inner distributing tubes that deliver steam evenly and keep condensate from freezing—making them ideal for air temperatures below 40°F.
Often referred to as “no-freeze” coils, these Industrial Distributing Steam Coils incorporate an inner tube housed within the primary tube, creating an efficient dual-tube design. The inner tube distributes steam to the far end of the coil, where it returns and condenses in the surrounding annular space. As the steam travels, the warmth of the inner tube acts as a built-in heat trace, preventing condensate in the outer tube from freezing and ensuring dependable performance in low-temperature applications.
Constructed with precision TIG welding and available with ASME “U” stamp or CRN certification, these coils are built to perform in the most demanding industrial environments. Offered in a variety of materials and configurations, each coil is customized to meet the specific needs of industries such as power generation, food processing, and chemical processing.
Trust Advanced Coil for custom-engineered steam distributing coils that deliver exceptional reliability, durability, and thermal performance—no matter the conditions.
Models Offered

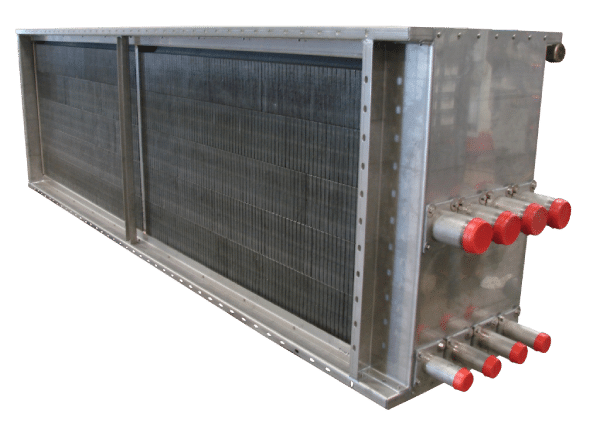

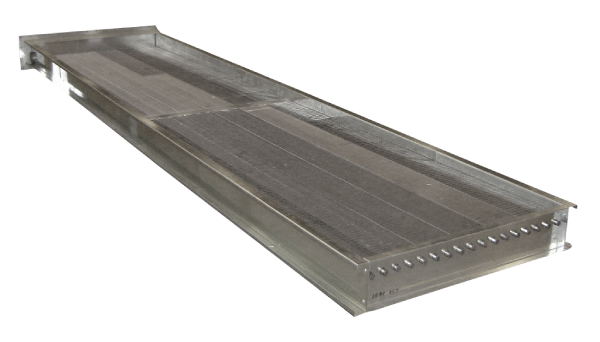

Model DS

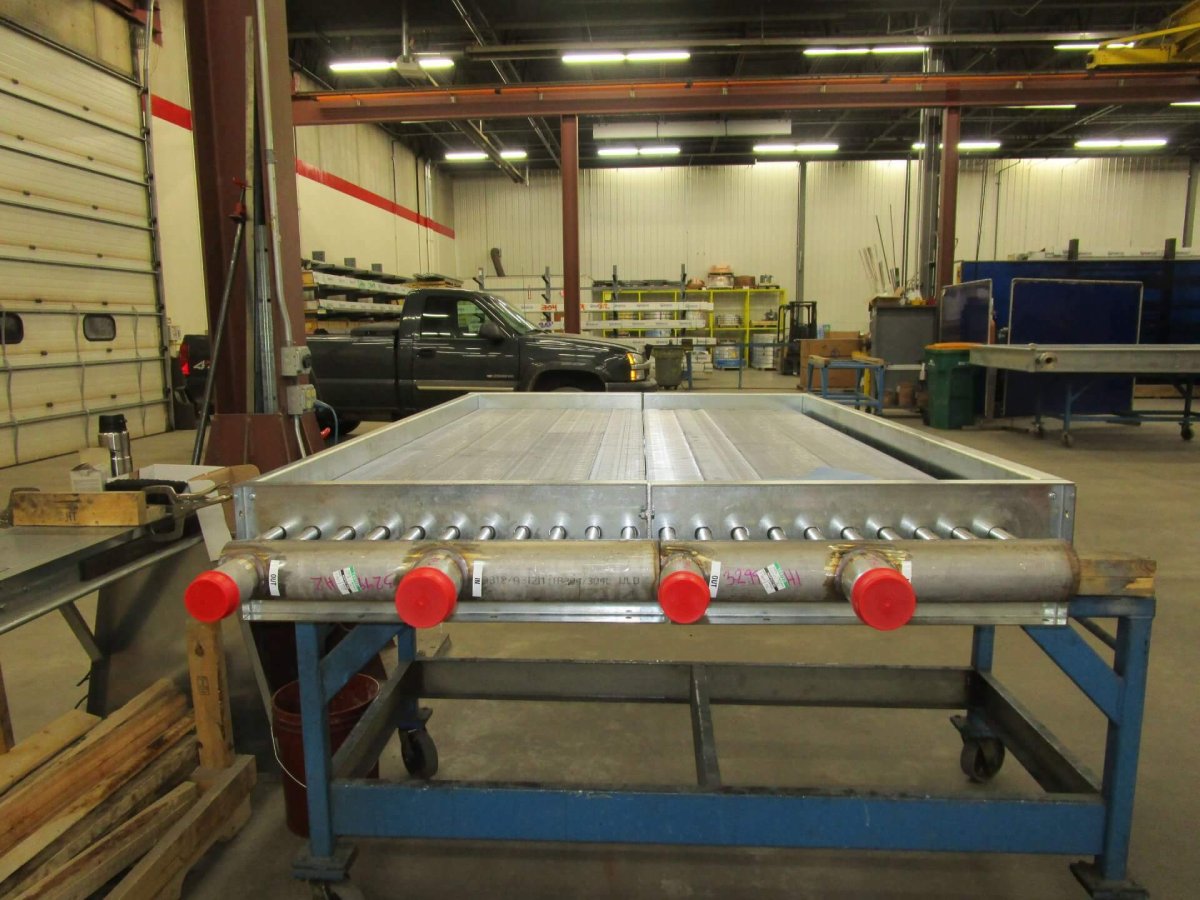

Distributing Steam with Same End ConnectionsModel DS coils are available in one- or two-row configurations with connections located on the same end.
Model DO
Distributing Steam with Opposite End ConnectionsModel DO coils are available in one- or two-row configurations with connections on opposite ends.
Custom Steam Distribution Coils Design
Non-Freeze Steam coils feature an inner tube inside the primary tube for two reasons. The inner tube distributes the steam to the far end of the primary tube where the steam returns and condensed in the annular area between the tubes. The inner tube also acts as a heat-trace to keep the primary tube from freezing. Advanced Coil custom designs non-freeze coils & steam distributing coils with TIG welded tube side construction, and ASME ‘U’ stamp or CRN construction available upon request. Non-Freeze Steam Coils, also known as Type DS coils, are available as both one-row and two-row deep coils with the steam feed connection and the condensate return connection on the same end.
Advanced Coil manufactures steam distribution coils in the following materials:
Other materials available upon request.
Specifications
Steam Coil Case Types & Materials
| Fin Materials | Tube Materials | Case Materials |
| 0.025” or 0.016” thick half-hard temper aluminum | 7/8” x 0.049” wall 304L or 316L stainless steel | 16ga. to 1/4” 304L or 316L stainless steel |
| 0.025” or 0.016” thick half-hard temper copper | 7/8” x 0.083” wall 304L or 316L stainless steel | 16ga. to 7ga. galvanized steel |
| 0.015", or 0.020" thick 304 or 316 stainless steel | 7/8” x 0.109” wall steel | Other materials upon request |
| 0.012” thick carbon steel |
Non-Freeze Steam Coil Material Types
| Case Material | Tube Material | Fin Material |
| 16ga. to 1/4” 304L or 316L stainless steel | 7/8” x 0.049” wall 304L or 316L stainless steel | 0.025” or 0.016” thick half-hard temper aluminum |
| 16ga. to 7ga. galvanized steel | 7/8” x 0.083” wall 304L or 316L stainless steel | 0.025” or 0.016” thick half-hard temper copper |
| 7/8” x 0.109” wall steel | 0.010” thick 304 or 316 stainless steel | |
| 0.012” thick carbon steel |
Typical Application Reference Chart
| Typical Application | Tube Material | ube Designation | Header Material | Typical Design Pressure @ Temperature* |
| High pressure, non-corrosive steam | 0.109” wall (12 ga.) Steel | S09 Welded 309 Seamless | Sch 40 Carbon Steel | 250 PSIG @ 450°F |
| Corrosive steam or corrosive atmosphere | 0.049” wall (18 ga.) 304LSS | 449 Welded 549 Seamless | Sch 40 304LSS | 250 PSIG @ 450°F |
| Corrosive steam or corrosive atmosphere | 0.049” wall (18 ga.) 316LSS | 649 Welded 749 Seamless | Sch 40 316LSS | 250 PSIG @ 450°F |
| High-pressure, corrosive steam or corrosive atmosphere | 0.083” wall (14 ga.) 304LSS | 483 Welded 583 Seamless | Sch 40 304LSS | 250 PSIG @ 450°F |
| High-pressure, corrosive steam or corrosive atmosphere | 0.083” wall (14 ga.) 316LSS | 683 Welded 783 Seamless | Sch 40 316LSS | 250 PSIG @ 450°F |
*Higher pressures and/or temperatures are available to meet the specific project requirements
Distributing Steam Coil Applications
Advanced Coil manufactures steam distribution coils for a variety of applications & Industries including:
- Grain & Oilseed Heat Exchangers
- Pulp & Paper Heat Exchangers
- Dairy & Food Processing Heat Exchangers
- Utility & Power Plants Heat Exchangers
- Heat recovery systems
- Chemical Processing Heat Exchangers
- Textile factories
Distributing Steam Coil Configurations

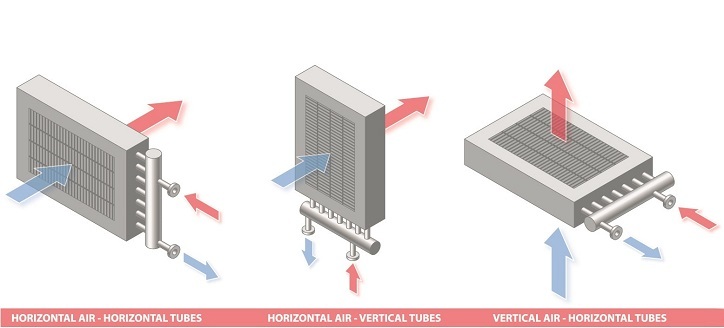

Model DS
Since both connections are on the same end these coils can be installed in three possible configurations:
- Horizontal Air Flow with Horizontal Tubes
- Horizontal Air Flow with Vertical Tubes
- Vertical Air Flow with Horizontal Tubes

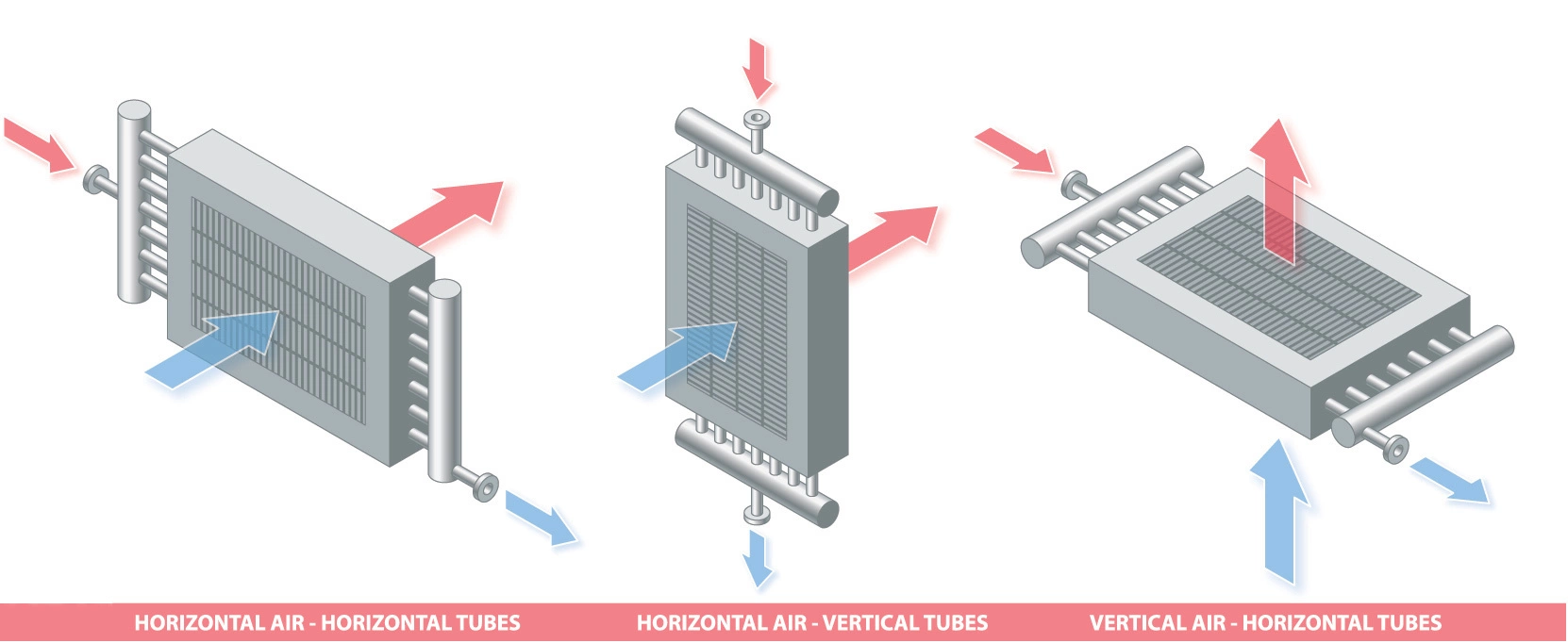

Model DO
Type DO coils are available as both one-row and two-row deep coils with the steam feed connection and the condensate return connection on opposite ends of the coil.
